posted September 06, 2006 09:28 PM
Edited By: Editor on 6 Sep 2006 23:08
2007 Honda CBR600RR The CBR(R)600's most radical redesign since the introduction of the RR in 2003 is highlighted by a whole new engine, frame and bodywork that results in a smaller, lighter, more-powerful CBR600RR with a class-leading power-to-weight ratio and unparalleled performance.
An all-new machine. We made it sharper, sleeker, and most of all, lighter. Enter the new-for-2007 CBR600RR, packing an all-new, more compact engine putting out greater horsepower and torque, a new, lighter aluminum frame, stronger front brakes, HESD electronic steering damper, and arguably the most radical 600-class styling ever.
New for 2007
- Class-leading power-to-weight ratio for outstanding acceleration and handling.
- Smaller, lighter, more compact inline four-cylinder engine.
- Improved midrange performance and enhanced peak power.
- Significant weight reduction in engine and chassis.
- Repositioned transmission shafts within crankcase allow for shorter engine.
- New lightweight, forged-aluminum pistons incorporate special shot peening for added toughness.
- Lightweight magnesium head cover.
- New, single exhaust valve-springs.
- Smaller, lighter neodium magnet ACG.
- New transmission gear ratios.
- Smaller, lighter clutch.
- New front-brake vertical-piston master-cylinder system.
- Lighter weight stainless steel four-into-one exhaust features new inline-exhaust valve to control exhaust pressure for maximum performance.
- New intake-air control valve (IACV) minimizes torque reaction and smoothes response to small throttle changes through gradual reductions of air and fuel intake when the throttle is opened and closed.
- New non-resonance knock sensor maintains optimum spark advance while constantly monitoring combustion performance during mid- to high-speed operation.
- New nose-mounted ram-air induction directs fresh, cool air to a higher-volume airbox.
- New smaller and lighter Honda Electronic Steering Damper (HESD).
- Newly designed Fine Die-Cast (FDC) frame uses four large castings for lighter weight.
- Improved mass centralization.
- Redesigned radiator with compact dimensions improves cooling capacity.
- All-new bodywork enhances handling and performance.
- Handlebars raised 10mm for improved rider comfort.
- Center of gravity revised for more neutral response and easier side-to-side flickability.
- New, compact instrument design.

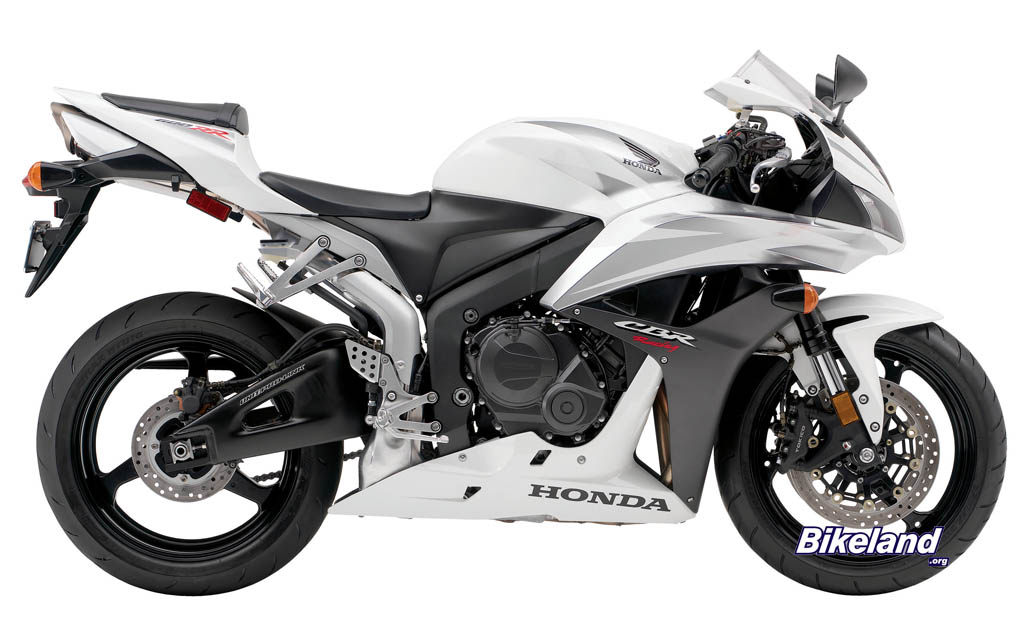

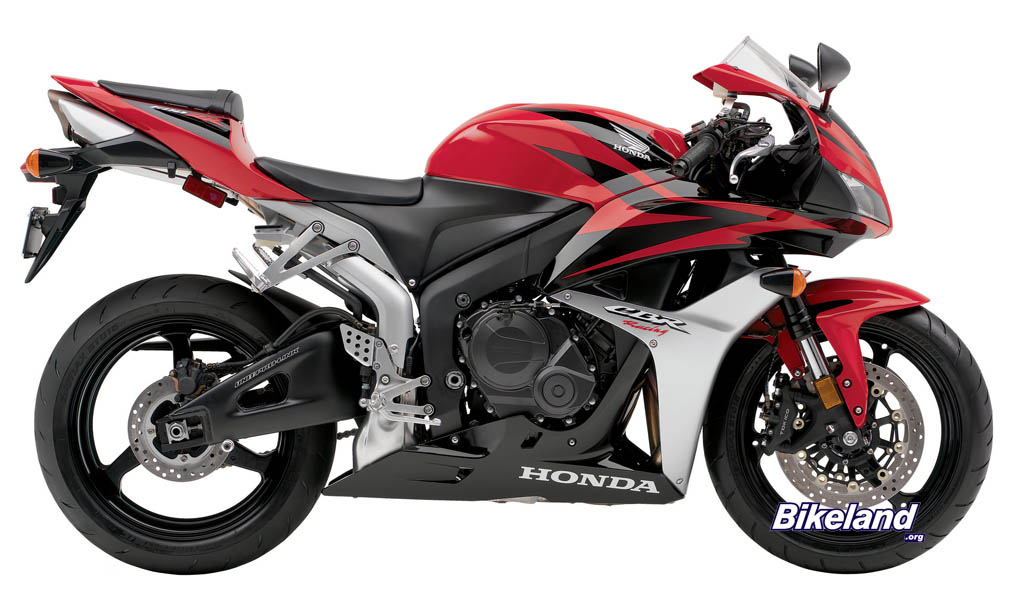

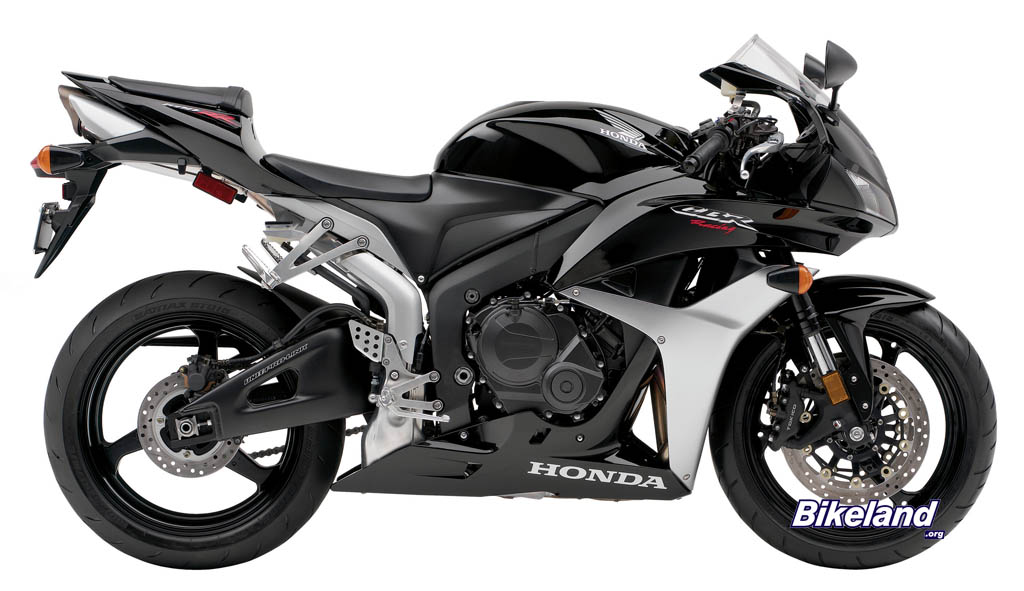

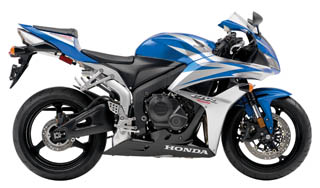

- Exciting new colors--Pearl White/Silver and Ultra Blue Metallic/Silver--join Red/Black and Black as color options.
Unique features
- Unit Pro-Link(TM) rear suspension and swingarm design inspired by RC211V(R).
- Dual Stage Fuel Injection (DSFI) system features two injectors per cylinder.
- High-revving engine redlines at 15,000 rpm.
- MotoGP-style RC211V center-up exhaust system.
- Radial-mount front brake calipers combined with radial actuated master cylinder.
- 41mm Honda Multi-Action System (HMAS) inverted front fork.
- Centrally located fuel tank increases mass centralization and allows more compact frame design.
- Line beam headlights feature three-piece reflector design.
Engine/Drivetrain
- Liquid-cooled DOHC 16-valve 599cc four-stroke inline four-cylinder engine features oversquare bore and stroke of 67mm x 42.5mm.
- Intake port surface treatment revised for improved efficiency.
- Oil jet relocated beneath piston for additional friction reduction and cooling.
- Iridium-tip spark plugs improve fuel combustion and performance.
- DSFI system features 40mm throttle bodies and two injectors per cylinder--one upper and one lower--controlled by an electronic control system (ECU) that senses rpm and throttle opening. Lower injector enhances rideability while upper injector improves top-end horsepower.
- Denso 12 hole injectors deliver finely atomized fuel mixture for optimum combustion efficiency and power.
- Auto enrichment system is integrated into programmed fuel injection (PGM-FI) module, eliminating the need for a manual choke.
- Two-stage ram-air system provides high volume of cool air to the airbox for linear power delivery and incredible engine performance.
- Cylinder head features angled valve insets to improve airflow.
- Cylinder head features two springs per intake valve and one spring per exhaust valve for optimum high-rpm valve operation and durability.
- Direct shim-under-bucket valve actuation ensures high-rpm performance and durability with 16,000-mile maintenance intervals.
- Lighter pistons and lighter, nutless connecting rods contribute to quicker acceleration.
- Double-pivot tensioner for cam-chain durability.
- Right-side starter gears allow increased lean angle.
- Smooth-shifting close-ratio six-speed transmission with new gear ratios is closely matched to the engine's powerband.
Chassis/Suspension
- 41mm inverted HMAS cartridge front fork features spring preload, rebound and compression damping adjustability for precise action.
- Unit Pro-Link rear suspension system is patterned after RC211V GP racer. In this two-piece shock system, the upper shock mount is contained within the swingarm rather than the frame. With no top frame mount for the shock, this unique system reduces negative suspension energy from being transmitted into the frame, allowing optimum frame rigidity and improved rideability out of corners.
- Braking system features twin four-piston radial-mounted front calipers, dual 310mm front discs and a single 220mm rear disc for optimum stopping power.
- New vertical-piston master-cylinder system produces superior leverage ratio at the front brake lever for higher braking efficiency with excellent feel and controllability. This layout permits the use of a longer brake lever, which means more braking force with less effort from the rider.
- Lighter aluminum steering stem.
Additional Features
- Industry-leading ergonomic design features maximum rider comfort for minimum fatigue in all riding conditions.
- Centrally mounted 4.8-gallon fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design.
- Plastic tank shell cover protects tank and airbox.
- Line-beam headlights feature three-piece reflector design utilizing two H7 bulbs for optimum light distribution and a unique compact design.
- New instrumentation is very compact and features LCD panel with tachometer, odometer, twin tripmeters speedometer, fuel gauge and clock.
- Attractive, hollow-spoke aluminum-alloy wheels feature race-spec 3.5 x 17.0-inch front and 5.5 x 17.0-inch rear dimensions.
- One-piece fan assembly for maximum cooling efficiency.
- Maintenance-free battery.
- Optional seat cowl.
- Compact rear cowl storage compartment for U-type locking devices (lock not included) under the passenger seat.
- Pivoting, aerodynamic mirrors.
- Integrated ignition-switch/fork lock for added security.
- Convenient push-to-cancel turn-signal switch.
- Transferable one-year, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan.
- Purchase of a new, previously unregistered Honda unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider's Club of America(R) (HRCA(R)). Benefits include roadside assistance, online access to the Honda Common Service Manual, six issues of the bimonthly Honda Red Rider(TM) magazine, travel discounts, trip routing and MSF reimbursement, plus access to the HRCA Web site (www.hrca.honda.com). For details on the HRCA, dealers should call (310) 783-3958, 8:30 a.m. to 5 p.m. Pacific Time.
Available accessories
- Color-Matched Passenger Seat Cowl, Cycle Cover.
Specifications
- Model: CBR600RR
- Engine Type: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 67mm x 42.5mm
- Compression Ratio: 12.2:1
- Valve Train: DOHC; four valves per cylinder
- Carburetion: Stage Fuel Injection (DSFI)
- Ignition: Computer-controlled digital transistorized with three-dimensional mapping
- Transmission: Close-ratio six-speed
- Final Drive: #525 O-ring-sealed chain
- Front Suspension: 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
- Rear Suspension: Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
- Front Brakes: Dual radial-mounted four-piston calipers with 310mm discs
- Rear Brakes: Single 220mm disc
- Front Tires: 120/70ZR-17 radial
- Rear Tires: 180/55ZR-17 radial
- Rake (Caster Angle): 23.7o
- Trail: 96.3mm (3.8 inches)
- Seat Height: 32.3 inches
- Fuel Capacity: 4.8 gallons, including 0.9-gallon reserve
- Colors: Pearl White/Silver, Ultra Blue Metallic/Silver, Red/Black, Black
- Meets current EPA standards.
- California version meets current CARB standards and may differ slightly due to emissions equipment.
posted September 08, 2006 03:35 AM
Very nice but shouldn't this be on a forum for small Honda's ?
____________
Candy Thunder Blue 2006 ZZR1400
Stock wheelbase
Max: 205.4 mph in 1.25 miles
2012 ZZR1400 in Golden Blazed Green
Brock CT Full System. etc
Max: 203.1 in 1 mile (so far)
posted September 08, 2006 08:52 AM
This topic is mirrored across several forums within the site.
____________ What business is it of yours where I'm from, Friendo?
posted September 08, 2006 03:30 PM
fuck that piece if shit. honda sucks ass. overpriced shit box. they shouldnt even make 600's. too many kids buy them and think they're the man when they rev past 10,000 rpm's. then they blast the gas and bust they ass. BIG BOY style is the way to go. play with the big dogs or stay on the porch BITCH!
posted September 08, 2006 06:45 PM
All that sleekness and the blinkers still stick out wuz up with that. Little bikes have low mile engine life.
____________
77 RD 400
80 GS1000 GT
06 ZX14
Needs a life
Miles to go before I sleep....
Posts: 10623
posted September 09, 2006 09:23 PM
...blame the turnsigs on D.O.T. and the like...
____________ “We sleep safe in our beds because rough men
stand ready in the night to visit violence on those
who would do us harm.”
-George Orwell
posted September 26, 2006 05:32 AM
Wait a minute! I just noticed, what's with the cut-out in the side fairings just above the turnsignals? You can see the forks and white background through it. What type of purpose would that serve cause it looks like crap.
____________
CBR1000RR
Best Literbike: Performance Bikes, Superbike, BIKE, MCN, Road Racing World, and Motorcycle USA
quote:fuck that piece if shit. honda sucks ass. overpriced shit box. they shouldnt even make 600's. too many kids buy them and think they're the man when they rev past 10,000 rpm's. then they blast the gas and bust they ass. BIG BOY style is the way to go. play with the big dogs or stay on the porch BITCH!
posted September 26, 2006 07:00 PM
i hope ny28av was joking..... if he wasnt that has to be the most ignorant comment ive read all night...
____________
Best: 60ft 1.351 1/8 5.68 mph 123.98 1/4
8.89 mph 151.32
posted September 26, 2006 07:03 PM
I like the Honda bike but wow that new 6R is HAWT!
____________
2010 Concours14
'08 R1 YAMAHA
ZX14 gone!
CBR600RR track bike
posted September 27, 2006 12:33 AM
dunno what to say, I just can't get friendly with honda anymore, design wise same goes for some other brands as well.
