KZScott
Needs a life
high on speed
Posts: 7235
|
posted February 19, 2009 11:13 AM
thx guys
I did get the cam cap from Jack, and theres enough buckets between the 2 heads to do one, so its GTG. going to finish lapping the valves tonight. 5 to go  .
my 3 spare 1287 pistons are in this motor. i got the forth thru Schnitz. cheaper than directly from JE. check with WTN on psychobike, he might have some
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos

|
brickman
Expert Class
Posts: 294
|
posted February 19, 2009 01:38 PM
thanks...i'll give them a try.
|
brickman
Expert Class
Posts: 294
|
posted February 19, 2009 01:42 PM
quote:
quote:
and if you knead a cam cap just let me know. or a few buckets
thats a generous offer, but the head & cam cap are line bored as a unit.
i probably wouldn't "mix & match"
that makes scents on the cam cap. i'll have to make sure i don't mix mine up...thanks
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted February 19, 2009 03:31 PM
yeah, same as cases, you cant mix them up. good thing they are labled
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted March 22, 2009 01:25 AM

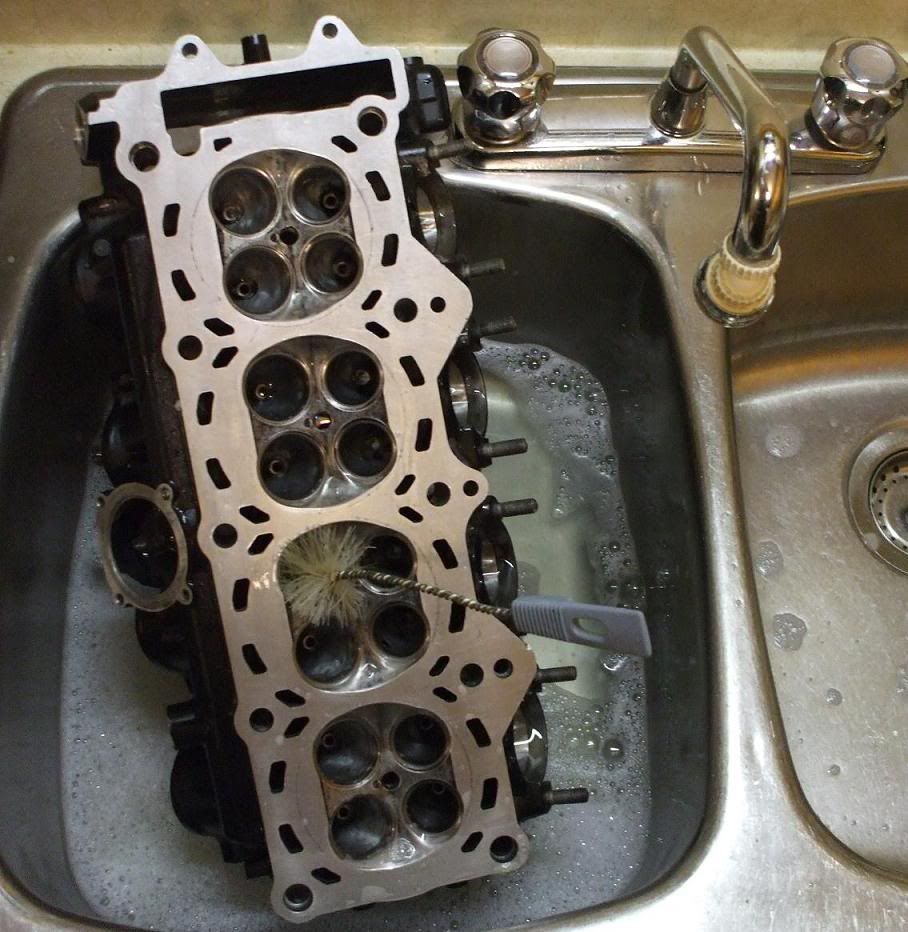

got a new head gasket and new valve seals, and got the head is assembled. Now i just have to get the valve clearances right. they are a mess(see new thread) borrowing a degree kit from a friend in a few days and ill check cam timing and PTV. i thought you guys might like this pic of cleaning the head
shhhhh
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
Stuart Racing
Zone Head
N.H.R.A . Dragracing.
Posts: 999
|
posted March 22, 2009 05:27 AM
My kind of parts cleaner Scott......
____________
Life in the Fast Lane..........
|
entropy
Moderator
Posts: 8671
|
posted March 22, 2009 07:04 AM
quote:
got a new head gasket and new valve seals, and got the head is assembled. Now i just have to get the valve clearances right. they are a mess(see new thread) borrowing a degree kit from a friend in a few days and ill check cam timing and PTV. i thought you guys might like this pic of cleaning the head
shhhhh
perfect!
Now just pop it in the dishwasher !
____________
This moderator uses moderation in moderation
|
aliveagain
Needs a life
Posts: 5033
|
posted March 22, 2009 08:00 AM
I like to leave a little dirt or grease on the brush just to mark my spot.My wife thinks I'm a darling for that.Yeppers, that's me!
____________
I wondered why the baseball kept getting bigger. Then it hit me.
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted March 22, 2009 11:59 AM
if there was a dishwasher here it would have been in it lol
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted March 31, 2009 01:17 PM
getting excited, shims should be here in a couple days. thx for the tip on the Honda CRF 450 shims. the parts guy thought it was an unsual order . "you must race or something?" "yes its actually for a ZX12R......"
ill get pics of checking cam timing and PTV soon
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
tcchin
Zone Head
Posts: 867
|
posted March 31, 2009 07:21 PM
We need to hook Scott up with the PTV tool...unless he's already made one. I'm old - I forget things.
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted March 31, 2009 09:07 PM
I have not... it would make using checking springs a thing of the past correct?
got specs?
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
tcchin
Zone Head
Posts: 867
|
posted March 31, 2009 09:44 PM
If Karl can revive the pictures, I can scan the shape of the finger and scrape together the rest of the specs.
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted March 31, 2009 09:59 PM
, I wont rush you guys, when ever you have spare time.
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
entropy
Moderator
Posts: 8671
|
posted April 01, 2009 08:39 AM
quote:
If Karl can revive the pictures, I can scan the shape of the finger and scrape together the rest of the specs.
yep, i have the pix, buried somewheere in photobucket
the only thing i'd do different next time is make the handles out of steel, cause in my heavy hands the aluminum bends.
BTW I built 2 of them so i wouldn't have to fool around changing the set up between exh and int.
____________
This moderator uses moderation in moderation
|
tcchin
Zone Head
Posts: 867
|
posted April 01, 2009 01:14 PM
I have the solution to avoiding the setup change between IN & EX: Make a tappet depressor finger that is symmetrical about a plane that passes through the pivot hole axis. That way, one side is used on IN and the other is used on EX. Also, using a solid lever arm (e.g., McM #86895K481) instead of angle should eliminate the bending issues, as well.
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted April 02, 2009 07:00 PM
 Edited By: KZScott on 3 Apr 2009 05:16
thx for the email! looking forward to part 2
found some of your pics Karl. they were in the "lapping valves" thread from last May
oh Tim/Karl, whats the McMC P# for the DI jointed arm?
thx
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
tcchin
Zone Head
Posts: 867
|
posted April 02, 2009 11:11 PM
There are two to choose from: 2214A5 and 85195A11.
|
entropy
Moderator
Posts: 8671
|
posted April 02, 2009 11:22 PM
quote:
There are two to choose from: 2214A5 and 85195A11.
i have both, and the more expensive one (the black one pictured) is worth the extra bux.
cutting the ends off the cam cap makes things easier
turning the cam ends down to .750 also makes things easier.
Tim made some probes for the DI which allows you to get on the bucket w/o modding the cap or turning down the cam ends. That's the finesse way to do it. I'm basically a "hammer-mechanic"
____________
This moderator uses moderation in moderation
|
tcchin
Zone Head
Posts: 867
|
posted April 02, 2009 11:28 PM
Notice that Karl has his contraptions set up differently. On the intake side, the finger is mounted inside the angle of the lever arm. On the exhaust side, the finger is mounted on the outside of the lever arm. If you use the double-ended finger design (where's a GB when you need one?), you'd have to mount it on the outside of the lever arm so it would be allowed to rotate into position.
|
Stuart Racing
Zone Head
N.H.R.A . Dragracing.
Posts: 999
|
posted April 03, 2009 05:21 AM
Are the shims on top or on the bottom....
____________
Life in the Fast Lane..........
|
KZScott
Needs a life
high on speed
Posts: 7235
|
posted April 03, 2009 08:30 AM
thx for the numbers Karl!
excellent follow up email Mr X Dot! (you would need 2 GBs to use the double ended design lol) ill post pics when i get the patented Tim Chin PTV tool finished. i need to pick up some aluminum, im just about out
bottom
____________
01 ZX-12R 8.84 @ 156.3 no bars, DOT tires. Pump Gas, NA.... turbo 8.47 @ 164.
00 ZX-12R 8.62 @ 165.2 no bars, slicks, Pump Gas, 55 shot.... turbo 8.32 @173
00 ZX-12R Fastest NA Kawasaki in the world 1: 222.046 1.5: 226.390 Loring AFB
00 ZX-12R street turbo 1: 227.9 1.5: 234.1 Loring AFB
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Loring AFB Worlds fastest ZX-12R
CMG Racing RCC Turbos
|
tcchin
Zone Head
Posts: 867
|
posted April 03, 2009 11:16 AM
On a ZX-12, the shims are under the buckets.
|
Stuart Racing
Zone Head
N.H.R.A . Dragracing.
Posts: 999
|
posted April 03, 2009 05:13 PM
Thanks ....Whats the PVT tool do...I can`t quite figure out whats going on in that pic. besides degreeing the cams....
____________
Life in the Fast Lane..........
|
tcchin
Zone Head
Posts: 867
|
posted April 03, 2009 05:51 PM
Edited By: tcchin on 4 Apr 2009 01:56
It bears on the tappets to open the valves and determine PTV, along with the dial indicator. In the pics, only the exhaust side is set up for use.
|
|
|
