How Silicon-based Technology Provides "Intelligent" Impact Protection to Textiles
By: Graham Budden and Fernando Vazquez - Dow Corning Corporation
Introduction
One of the largest growth areas in the textile market is the development of "smart" technical textiles that provide added functionality for the user. Much research has focused on fabrics that automatically adjust to changes in body temperature or humidity to deliver improved breathability and comfort for the wearer. Other fabrics provide UV protection or abrasion resistance. Some are treated to be super absorbent or anti-microbial. But until now, impact protection has largely remained the domain of hard armor systems.
A new and innovative silicon-based technology developed by Dow Corning Corporation - the Dow Corning® Active Protection System - provides the solution to a problem that has long challenged textile manufacturers: Is it possible to develop a fabric that effectively protects against high-energy impacts without sacrificing flexibility, breathability, and ease of use? And just as importantly, could this fabric provide a level of design and fabrication versatility that would make it suitable for integration into existing garment manufacturing processes?
With the recent introduction of Dow Corning Active Protection System fabric, the answer to both questions is a resounding "yes."
Overview of the technology
Dow Corning first developed this technology to meet the needs of the high-performance sports apparel market - specifically, the motorcycle industry - with two key objectives:
Provide superior protection against high-energy, blunt-force impact.
Deliver this protection with maximum comfort for the wearer.
To meet this challenge, Dow Corning made use of the characteristics of a special type of silicone impregnated into a carrier textile. The result is a patented technology for the creation of impact protection textiles that offer superior defense against high-impact force. These fabrics are fully flexible and breathable and, additionally, mold to the body form.
Figure 1. Dow Corning Active Protection System fabric used in motorcycle riding suit
The technology consists of a three-dimensional spacer textile support coated with soft, malleable, and formable silicone material. The extent of the impregnation is controlled so that the fabric remains both fully breathable for maximum comfort and easily bendable to allow conformity to the body. It remains soft and flexible under normal conditions, but when stressed under a high-impact force, it instantly transforms to a rigid solid, but only for the duration of the impacting force. After the force has been dissipated through the fabric construction, the silicone quickly becomes soft and flexible again.
The choice of textile affects overall impact performance and comfort. Spacer fabrics have been shown to be particularly advantageous and can enhance impact performance, flexibility, and comfort. Key parameters for these three-dimensional structures include thickness, monofilament density, monofilament thickness, and angle of the monofilament surface configuration.
When impregnating the fabric, it is particularly important to present the silicone so that it can readily absorb the impacting force through the spacer yarns in the direction of the force. Careful engineering of the dimensions of the spacer textile ensures this orientation, allowing the silicone to absorb maximum force, yet leaving the fabric completely breathable.
The silicone on the fabric surface and the spacer yarns in the immediate strike area first receive the impacting force. These instantly become rigid and transmit energy to adjacent spacer yarns, which also become rigid, thus spreading the impact. See Figure 2.

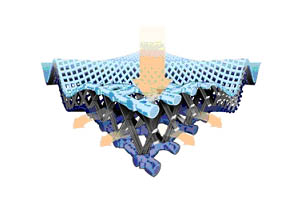

Figure 2. Cross section of impact protection fabric
Key features and benefits
When used in personal impact protection systems, this fabric offers a unique combination of performance and comfort benefits that are particularly suited for use in protective clothing and equipment
- High Performance: Instantly absorbs and dissipates high-impact energy.
- Flexible: Delivers unrestricted freedom of movement.
- Breathable: Uses an open structure that allows natural ventilation and airflow.
- Versatile: Can be cut, shaped, and contoured for virtually unlimited design possibilities.
- Customizable: Material properties can be adapted to meet exact manufacturer needs.
Because its protective capabilities are silicon-based, the fabric is also thermally stable. A slight tack develops at temperatures over about 80'C, but disappears upon cooling. The fabric remains flexible at low temperatures (-20'C) and is not expected to experience any adverse effects in regard to flexibility or impact performance, even at temperatures as low as -40'C.
Test results
Independent testing shows that the Active Protection System meets or exceeds EU protection standards for a variety of sports apparel and equipment. In these tests, a weight is dropped vertically onto the test piece and the transmitted force is measured. For example, the graph in Figure 3 shows a typical impact event under EN 1621-1 test conditions for limb protection in motorcycle apparel. This test, in which transmitted force is plotted over time, compares a typical hard-shell protector with Active Protection System fabric.
Of particular note in this example are the lower peak force and duration of the peak force displayed by the fabric. The textile dissipates the impact energy over a longer period than hard armor, which results in a less traumatic impact event. By contrast, a typical hard-armor product shows a higher force response over a shorter time. For the wearer, this means the force is felt more and could lead to more soft tissue damage.
By using the fabric in several layers, it is possible to protect very specific areas against varying impact levels. For example, two layers can be used on elbows, shoulders, and knees, three to four layers on the spine for maximum protection, and perhaps one layer along the forearm or shin. Results can also vary depending on the weight of silicone impregnated into the textile.
Further testing has been completed using the EN 1621-1 standard to assess performance against higher impact energies and the effect of multiple layers of fabric. Results are shown in Figure 4. Of particular interest is the large drop in transmitted force achieved by layering the fabric. This is due to the increased thickness along with a smaller contribution from the discontinuity between the fabric layers, which also helps reduce the transmitted force.
In addition to the EN 1621 standards for motorcycle apparel, Dow Corning has begun initial testing of Active Protection System fabric against European Standards minimum safety requirements for a selection of other sports-related protective devices including:
- Equestrian Shoulder Protectors
- Martial Arts Head Guards
- Soccer Shin Guards
- Field Hockey Shin Guards
- Cricket Thigh Guards
- Cricket Batsmen Gloves
- Ski Helmets
The results show that the protective fabric is capable of passing all the standards when suitably layered to increase thickness. In many cases, the thickness is less than current armor, plus it has the advantage of much improved flexibility and breathability.
Because the fabric is porous and breathable it is not "waterproof" in that it does not provide barrier protection against water. However, testing on motorcycle apparel shows that the fabric does not lose performance when wet, which is very important for many applications.
Obviously, the technology has not yet been tested for every possible application condition. Like any new technology, it is incumbent upon the end-product manufacturer to determine its own guidelines based on an item's intended use, specific requirements, and testing conditions.
Application opportunities
The high level of comfort and impact performance combined with the versatility of having a textile solution rather than a component molded part offers virtually unlimited application opportunities that extend far beyond the apparel market:
- Industrial and geo fabrics: compartment lining fabrics, protective casings and enclosures, sound damping
- Medical devices: hip protection, head protection, orthopedic accessories
- Architecture and construction: energy-absorbent flooring, blast protection, sound damping
- Military and civil defense: concealable armor, fragment armor, blast protection, helmets
Apparel and equipment designers can use Active Protection System fabric in places where hard armor would be too bulky, inflexible, or unwieldy. It also integrates easily into existing manufacturing processes because it can be cut and sewn. (Heat welding in not recommended at this time.)
In short, the Dow Corning Active Protection System has the potential to truly revolutionize the technical textile and impact protection market.
Source: All testing data is original and comes from Dow Corning or independent testing labs. Testing was completed according to British Standards guidelines using EN testing methods.
