johnnycheese
Pro
Posts: 1008
|
posted July 11, 2007 08:09 PM

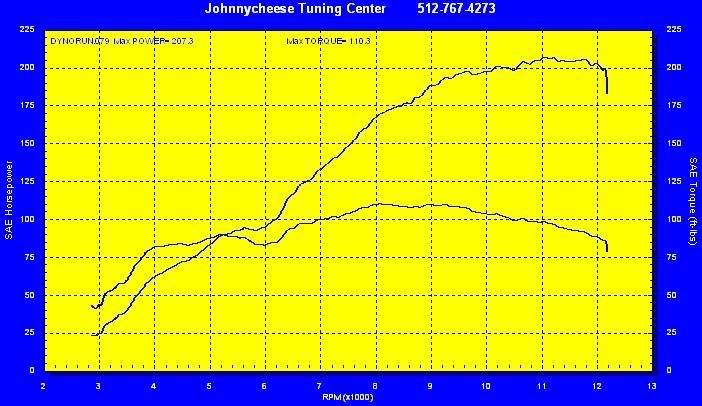

here is your SAE

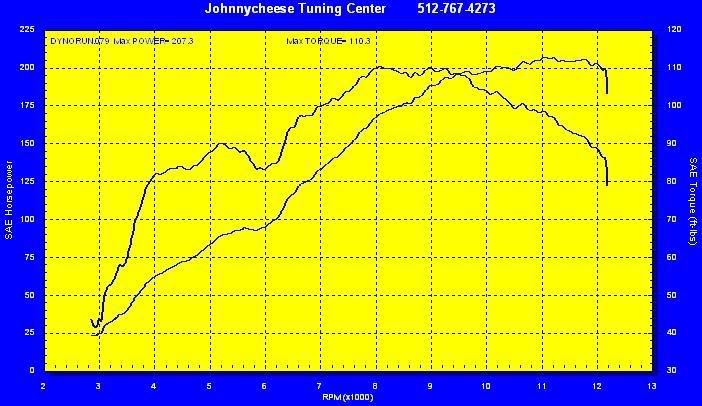

here is the one when it crosses at 5250
____________
Builder and tuner of some of the fastest N.A. and P/A Hayabusas and ZX12 /14 in Texas

|
johnnycheese
Pro
Posts: 1008
|
posted July 11, 2007 08:10 PM
and as for the dip I think it is the famous Muzzy 4-1 dip
____________
Builder and tuner of some of the fastest N.A. and P/A Hayabusas and ZX12 /14 in Texas
|
entropy
Moderator
Posts: 8671
|
posted July 12, 2007 02:53 AM
if johnny can't get that dip out, NO ONE CAN!
____________
This moderator uses moderation in moderation
|
aliveagain
Needs a life
Posts: 5033
|
posted July 12, 2007 04:17 AM
Interesting to see the difference.The top scale looks like a more or less flat line from 8000 on.I had it in the back of my mind to see how far the engine slows on every shift to see if it stayed in the power band.Awesome power in any case,ought to be a hoot to ride.
____________
I wondered why the baseball kept getting bigger. Then it hit me.
|
entropy
Moderator
Posts: 8671
|
posted July 12, 2007 04:43 AM
 Edited By: entropy on 12 Jul 2007 09:02
quote:
Interesting to see the difference.The top scale looks like a more or less flat line from 8000 on.I had it in the back of my mind to see how far the engine slows on every shift to see if it stayed in the power band.Awesome power in any case,ought to be a hoot to ride.
hey Pete,
YOUR 1430 should be even MORE awesome to ride!!
when are you getting it back together.
Remember if you end up needing a 4.6 stroker crank, i have a spare in perfect shape i will sell to you (give you great deal)
____________
This moderator uses moderation in moderation
|
TRNorBRN6001
Needs a job
Posts: 2021
|
posted July 12, 2007 06:17 AM
Sorry fellas, I have been out of town.
Yep, JC did his magic on the bike! I think he wanted to put a 150 hp shot of nos
on the bike, but the owner is not a very good rider and an idiot as well, so we'll
stick with a 70 shot for now.
____________
TFA 200MPH CLUB MEMBER!
|
aliveagain
Needs a life
Posts: 5033
|
posted July 12, 2007 11:37 AM
quote:
quote:
Interesting to see the difference.The top scale looks like a more or less flat line from 8000 on.I had it in the back of my mind to see how far the engine slows on every shift to see if it stayed in the power band.Awesome power in any case,ought to be a hoot to ride.
hey Pete,
YOUR 1430 should be even MORE awesome to ride!!
when are you getting it back together.
Remember if you end up needing a 4.6 stroker crank, i have a spare in perfect shape i will sell to you (give you great deal)
I'm still waiting on Carlquist.The journal was fine after polishing and thats the last I heard.It still needs to be nitrated and I want them to size the bearing inserts as I'm not that good at it.
____________
I wondered why the baseball kept getting bigger. Then it hit me.
|
entropy
Moderator
Posts: 8671
|
posted July 12, 2007 12:06 PM
quote:
Sorry fellas, I have been out of town.
Yep, JC did his magic on the bike! I think he wanted to put a 150 hp shot of nos
on the bike, but the owner is not a very good rider and an idiot as well, so we'll
stick with a 70 shot for now.
"owner is not a very good rider and an idiot as well..."
Gary,
Sounds like someone i have a lot in common with; a perfect candidate for TFA!
you coming down to Space City for the Texas Shootout in a couple weeks??
____________
This moderator uses moderation in moderation
|
dougmeyer
Needs a job
moderated
Posts: 2713
|
posted July 12, 2007 07:10 PM
What pipe is on the bike ? (did I miss that?)
|
johnnycheese
Pro
Posts: 1008
|
posted July 12, 2007 07:24 PM
Muzzy 4-1
____________
Builder and tuner of some of the fastest N.A. and P/A Hayabusas and ZX12 /14 in Texas
|
Y2KZX12R
Needs a job
CompetitionCNC.com
Posts: 3762
|
posted July 13, 2007 02:35 AM
JC, I remember the TI Force pipes having a horrible dip like that as well, but worse. I saw it on 3 diferent zx12rs with that pipe back in late 2000. Could never get rid of it totally.
They were at the time (maybe diff now?) 4-2-1 but the 2 was very very long. They all ended up taking them off and replacing them with varrious different pipes.
The early Akrapovic 4-1 pipes had a sag also.
____________
Y2KZX12R
CompetitionCNC.com
|
johnnycheese
Pro
Posts: 1008
|
posted July 13, 2007 03:17 AM
the famous Muzzy dip. Busas have it as well
____________
Builder and tuner of some of the fastest N.A. and P/A Hayabusas and ZX12 /14 in Texas
|
TRNorBRN6001
Needs a job
Posts: 2021
|
posted July 13, 2007 06:06 AM
Karl, I'll be out to Pasa'get down'dena this weekend for continuing education.
Let me know if you'll be working on your bike or going to the track Sat. and
would not mind some company.
Gary
I might have to pick up some new U4 while I am in Houston and see what the
bike will post.
I shot out to Bike night on it and saw JC's Victory Crew. It runs freaking strong!!!!!!!!
Now if I can only keep from destroying it again. Hope that flywheel holds together!
____________
TFA 200MPH CLUB MEMBER!
|
entropy
Moderator
Posts: 8671
|
posted July 13, 2007 06:28 AM
Gary,
I'm going to the track this afternoon, but wifey & I are pulling it up to Dallas on Sat afternoon. Staying with Buddy on Sat nite then we're going to Yellow Belly on Sun afternoon.
Do pick up some U4at Andy's and slap it on his dyno for a couple pulls. It would be way cool to get a good comparison between his FactPro and JC's DJ.
Too damn bad I'll be outa town when you are here
____________
This moderator uses moderation in moderation
|
dougmeyer
Needs a job
moderated
Posts: 2713
|
posted July 13, 2007 02:48 PM
Yeah that's it then. That pipe is just not designed to work down there.
|
supra5677
Pro
Posts: 1279
|
posted July 14, 2007 11:34 AM
The extende rev limiter is nice!! I called Lees Perfomance he recommended 105/108 cam timing for hi horsepower!!!
|
supra5677
Pro
Posts: 1279
|
posted July 14, 2007 11:36 AM
I would advance that timing 5 degrees at 6,000 to try to get that dip out of there..
|
VincentHill
Needs a life
Posts: 6520
|
posted July 14, 2007 03:40 PM
Mr Cheese, the SAE Numbers are more impressive than then STD!!
A 4-2-1 will remove that Spot and you need to add more fuel in that area even though the Chart may already be rich! It is pushing fuel out the intake and so less is in the exhaust to read and so it really is lean!
You may also need the 4-2-1 for Dr. Gary to get up to Speed also!
U Da MAN!!
|
tcchin
Zone Head
Posts: 867
|
posted July 14, 2007 06:14 PM
I agree - those are some damn respectable SAE numbers.
|
psycho1122
Pro
Posts: 1608
|
posted July 16, 2007 06:23 AM
quote:
I would advance that timing 5 degrees at 6,000 to try to get that dip out of there..
Good luck when it's pipe induced.
____________
You say PSYCHO like it's a BAD thing!!
|
VincentHill
Needs a life
Posts: 6520
|
posted July 16, 2007 07:30 AM
quote:
quote:
I would advance that timing 5 degrees at 6,000 to try to get that dip out of there..
Good luck when it's pipe induced.
Pipe and Cam timing!
____________
Made History @ Daytona and still one fast old man!!
|
dougmeyer
Needs a job
moderated
Posts: 2713
|
posted July 17, 2007 08:27 PM
I don't think you can get it out of there.
|
supra5677
Pro
Posts: 1279
|
posted July 18, 2007 07:09 AM
why not?
|
TRNorBRN6001
Needs a job
Posts: 2021
|
posted July 18, 2007 07:51 AM
It realy looks worse on paper than it feels while riding on the street.
I believe there was a similar dip in my stock motor, when
it had a Muzzy exhaust, but it may have been further accentuated
by the combination of Muzzy cams, short stacks, and TBs
Might have to drop a little race gas in and see what it'll do.
I was going to pick some up from Andy in Houston, but it
seems VP has left a sour taste in his mouth.
____________
TFA 200MPH CLUB MEMBER!
|
entropy
Moderator
Posts: 8671
|
posted July 18, 2007 08:38 AM
quote:
it seems VP has left a sour taste in his mouth.
I told him 10 times to quit drinking that stuff
____________
This moderator uses moderation in moderation
|
|
|
