Editor
Administrator
Posts: 914
|
posted September 16, 2005 05:48 PM
 Edited By: Editor on 16 Sep 2005 19:02

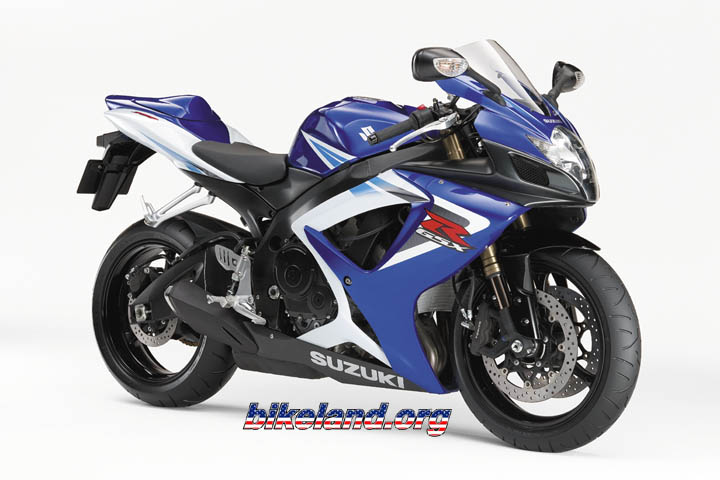

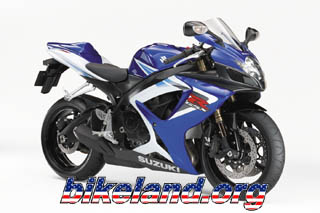

2006 GSX-R750 Specs
 2006 GSX-R750 (tentative)
SPECIFICATIONS
Engine Type: 4-stroke,liquid-cooled, DOHC,4-cylinder
Bore × stroke: 70.0 mm × 48.7 mm
Displacement: 749 cm3 (749 cm3)
Carburetion: Fuel injection 42 mm
Transmission: 6-speed, constant mesh
Frame type: Twin-spar (aluminum alloy)
Rake/trail: 23.8 degrees / 97 mm (3.8 in)
Suspension
Front: Inverted telescopic, coil spring, spring pre-load fully adjustable, rebound and compression damping force fully adjustable
Rear: Link type, oil damped, coil spring, spring pre-load fully adjustable, rebound and compression damping force fully adjustable
Brakes
Front: Radial mount, 4-piston calipers, 310 mm dual-disk brake
Rear: 1-piston caliper, 220 mm disk brake
Tyres
Front: 120/70 ZR17M/C (58W)
Rear: 180/55 ZR17M/C (73W)
Fuel tank: 17L
Overall length: 2,040mm (80.3 in)
Overall width: 715mm (28.1in)
Overall height: 1,125 mm (44.3 in)
Wheelbase: 1,400 mm (55.1 in)
Seat height: 810 mm (31.9 in)
Source: American Suzuki Motor Corp.

|
ZXRaven
Novice Class
Posts: 34
|
posted September 17, 2005 12:32 AM
Fugly
|
Just Joy
Needs a job
Posts: 3976
|
posted September 17, 2005 06:20 AM
purrrrdy......wonder if they changed the colors for this year......
____________
Life is what we make it, always has been, always will be.....
|
lizard
Pro
Modulator
Posts: 1483
|
posted September 17, 2005 08:58 AM
Sounds like Joy is Joansin for a new sickal. That's one of the nicest 06's I have seen this year.
|
Just Joy
Needs a job
Posts: 3976
|
posted September 17, 2005 09:30 AM
No.
____________
Life is what we make it, always has been, always will be.....
|
lizard
Pro
Modulator
Posts: 1483
|
posted September 17, 2005 10:43 AM
Yes,that's one of the nicest 06's I have seen this year.
|
fish_antlers
Administrator
The Truth is Out There
Posts: 21896
|
posted September 17, 2005 11:19 AM
quote:
Yes,that's one of the nicest 06's I have seen this year.
Definetly!
|
Just Joy
Needs a job
Posts: 3976
|
posted September 17, 2005 01:47 PM
quote:
Yes,that's one of the nicest 06's I have seen this year.
yet another jackass......I'm surrounded
____________
Life is what we make it, always has been, always will be.....
|
|
|
