Smooth_G
Expert Class
Posts: 228
|
posted February 24, 2009 01:03 AM
what is the torque for the valve cover?? is it 87 in lbs???

|
3000psi and falling
Zone Head
Posts: 848
|
posted February 24, 2009 06:49 AM
quote:
3000psi,,ok let me see if i understand this washer theory,,,,the bolt has a shoulder,, so u put a washer under the bolt to shorten to length of the shoulder so it puts more tension on the gasket,,how thick are the washers u use???,,do u put washers under all the valve cover bolts??i am just pissed off that i have to take all that plastic off
Yes you have it right, the idea is to shorten the length of the bolt's shoulder. I did not measure the washers but I would think any regular M10 SS washer would be about the same and work just fine. And yes put them under all 6 bolts, I started with the front middle one then the middle back, left and right back, then front. Dont get to worked up you dont have to remove all the plastic, here is what you remove.. 1'st the left and right ram air covers/dash panels. 2nd remove the tank cover. 3rd remove the ferrari vents. 4th remove the left and right upper and lower side fearings (i think i removed the upper and lower as one piece).

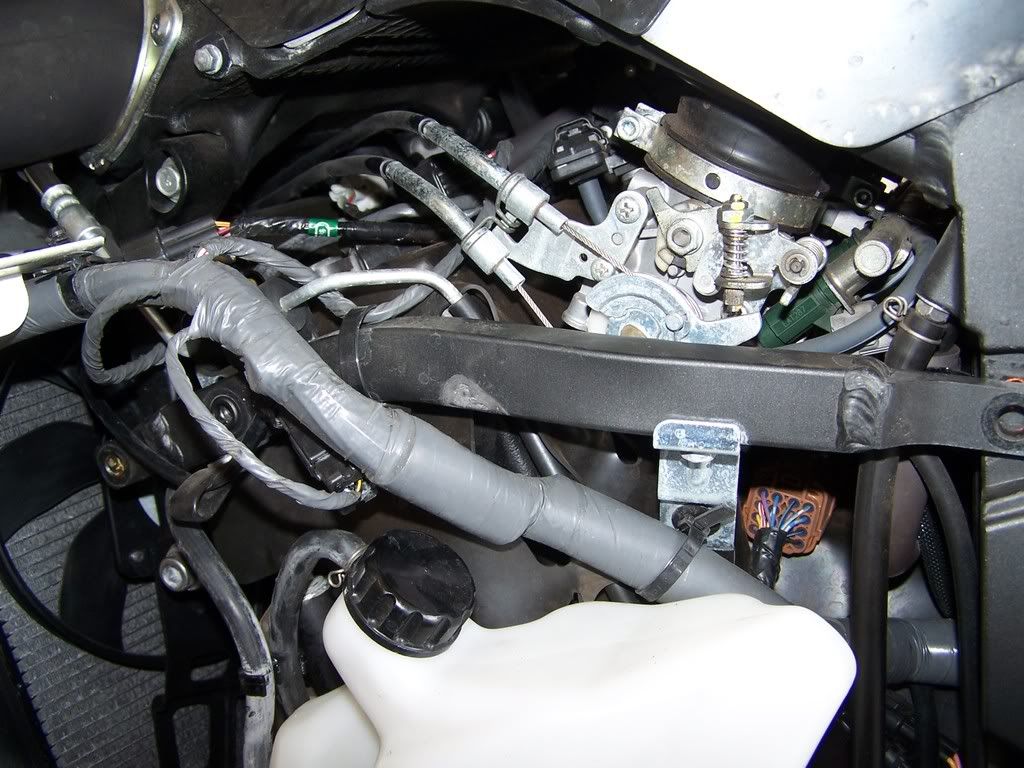

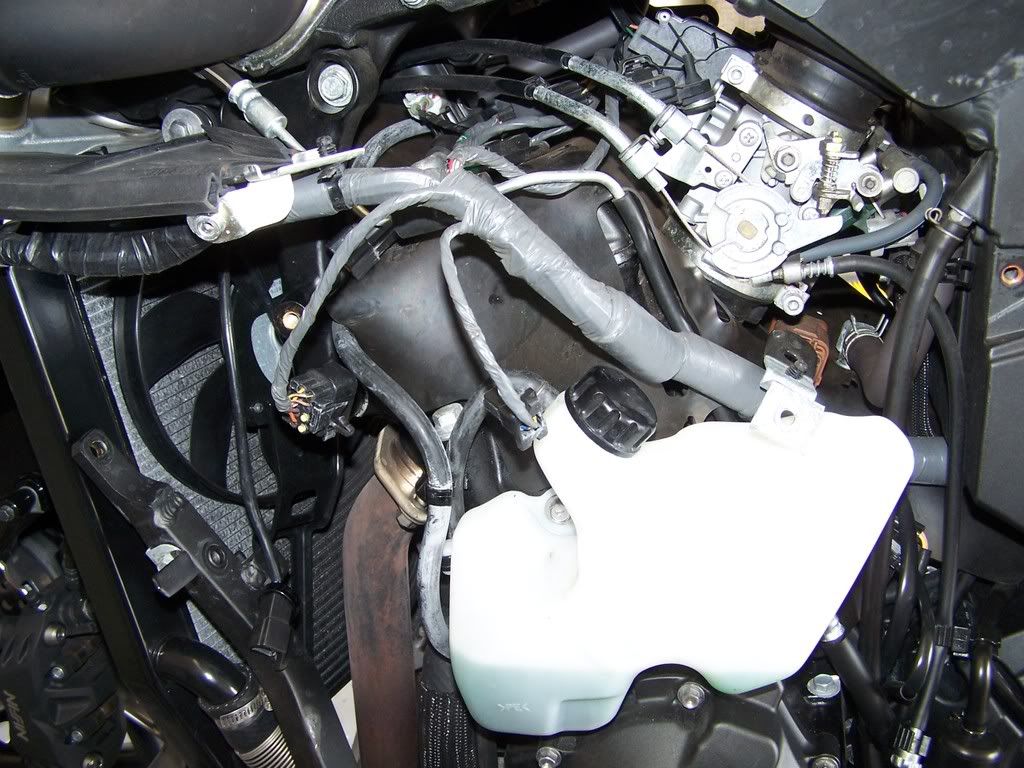

On the left side of the motor I removed a bracket that was in the way (2 bolts) and unpluged a few wires and moved them to the side. You will then need to unhook the rubber cover and push it out of the way (you dont have to remove it). You may want to check out you spark plugs while your at it. I think my owners manual said replace at 7500. I was right at that so I replaced them, but the ones that came out were just fine... And if you are close to 15000 miles go ahead and plan to check the valve lash at the same tme.
     All done!
____________
08 ZX14, 2010 Persimmon Red bodywork.
Flies pulled, 16-42, BMC street, 8" extensions, drag shock, cut pan, Cycle Concepts Drag Pack and springs, muzzy m14 w/ oval can, lowered, Shinco usoft rear, pcv with autotune, leightweight Shori 18ah battery, throttle meister. 500lbs at bandimeres scales with half tank of juice.
|
3000psi and falling
Zone Head
Posts: 848
|
posted February 24, 2009 07:02 AM
 Edited By: 3000psi and falling on 24 Feb 2009 15:10
quote:
what is the torque for the valve cover?? is it 87 in lbs???
Yes that is correct. You can download a shop manual from here for free, do a search for it. Ohh and lock tight the bolts back on the bracket.
____________
08 ZX14, 2010 Persimmon Red bodywork.
Flies pulled, 16-42, BMC street, 8" extensions, drag shock, cut pan, Cycle Concepts Drag Pack and springs, muzzy m14 w/ oval can, lowered, Shinco usoft rear, pcv with autotune, leightweight Shori 18ah battery, throttle meister. 500lbs at bandimeres scales with half tank of juice.
|
Old Guy
Expert Class
Posts: 470
|
posted February 24, 2009 11:09 AM
Might have to try the washer trick next time in.
I've just wiped the fairing clean check oil and go.
Or go buy a HD and ride with Sub Zero.
____________
Living the good life...,
On a XZ !!!!!
Tsukigi stainless full system
pcIII w/custom map
NO freakin flies!!
GP suspension forks
Penske rear shock
Rich's custom seat
And a whole bunch of other stuff.
97 zx6r full race bike with all the
good stuff
|
zixxer14
Pro
Damn that was Quick
Posts: 1233
|
posted February 27, 2009 07:29 PM
Well just got word from Kawi, it's my problem. Said I'm too far out of warranty, doesn't matter that they almost all leak. Thought I might make a stink with Kawi customer service anyway, hopefuly it will become a recall if enough customers rag on em. Guess I'll try the washer trick when I get around to fixin it. Just doin like Old Guy, wipen & riden for now.
|
|
|
|
|
